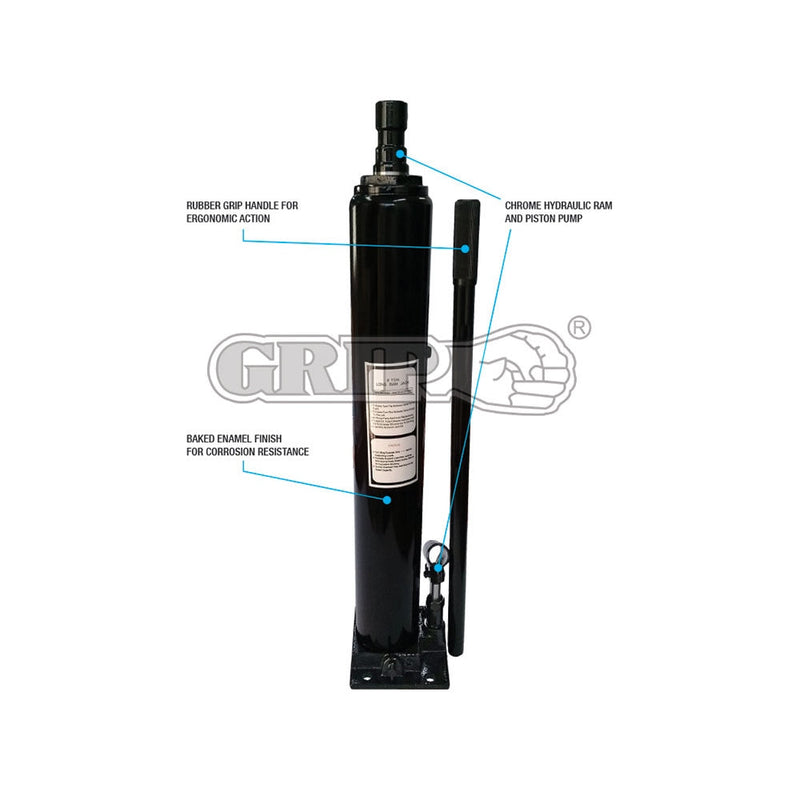

Grip 44522 8000kg (8T) Flat Base Hydraulic Lfting Ram Jack
For fitment in hydraulic lifting cranes or engine hoists used for the lifting of heavy objects or equipment. Also used in farm machinery applications.
FEATURES:
- Heavy duty chrome hydraulic ram and piston pump
- Flat base mounting stand with bolt holes
- Rubber gripped handle for ergonomic action
- 'T 'screw adjustment to raise or lower
- Baked enamel finish for corrosion resistance
- Suitable replacement for most cranes
SPECIFICATIONS:
- Capacity 8000kg
- Minimum height 620mm
- Maximum height 1120mm
- Hydraulic Lifting height 500mm
- Piston shaft Diameter 28mm
- Flat Base Dimension 145 x 121 mm
- Bolt Size Hole 10mm
- Weight(nett)15kg
