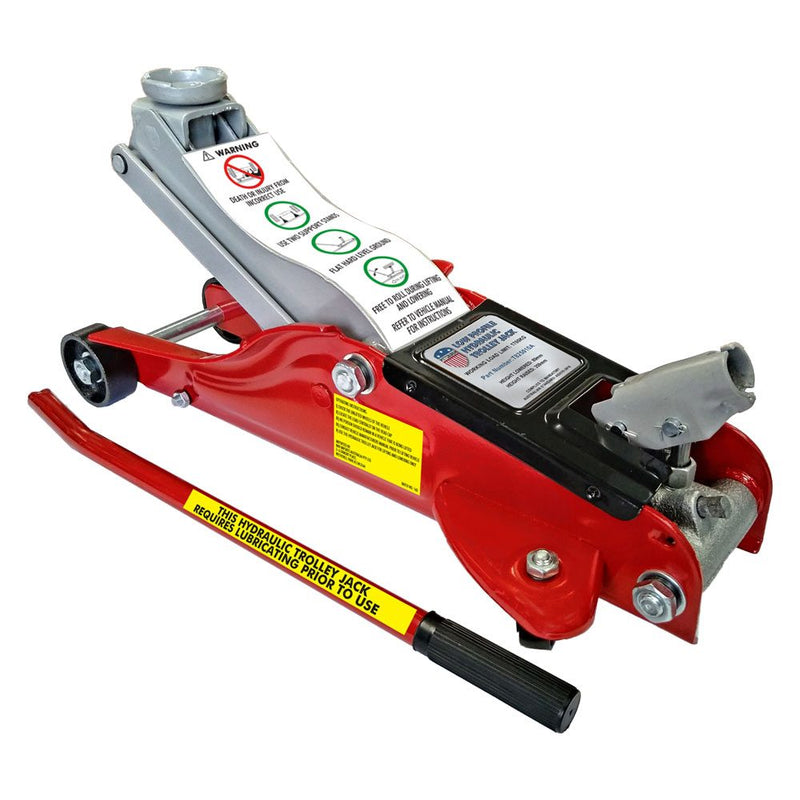

Pittsburgh T825010A 1700kg (1.7T) Low Profile Hydraulic Trolley Jack

Heavy duty trolley style hydraulic jack for lifting of motor vehicles, trailers or other heavy loads and equipment so maintenance or other procedures can be performed.

Features:

  • Folded and flanged solid steel frame construction gives rigidity and prevents twisting under load
  • One-piece steel lifting arm for greater strength
  • Heavy duty cast iron fixed front castor wheels
  • Rear 360-degree rotation cast iron swivel castors for efficient manoeuvrability
  • 360-degree rotation lifting sadle
  • Unique low rider profile gives suitability for sports and lowered vehicles
  • 1-piece jacking handle for extra stroke and manoeuvrability
  • Powder coated finish for durability and corrosion resistance
  • Owner’s manual included
  • Australian standards compliance
Application:
  • Heavy duty trolley style hydraulic jack for lifting of motor vehicles, trailers or other heavy loads and equipment so maintenance or other procedures can be performed. Unique low-profile design allows clearance for the lifting of sports and lowered vehicles.

Specifications:

  • Working Load limit: 1700kg
  • Maximum Raised Height: 359mm
  • Minimum Lowered Height: 89mm
  • Overall length: 550mm
  • Front Frame width: 110mm
  • Front Width including castors: 170mm
  • Front castor width: 25mm
  • Wheelbase: 440mm
  • Australian Standard: AS/NZS 2615:2016
  • WEIGHT(NET):14KG
Safety Note:
  • The jack must be used on hard level surfaces
  • The wheels of the vehicle being lifted to be chocked
  • Do NOT put a portion of your body under a vehicle supported by a jack
  • No person should remain in a vehicle that is being jacked
  • Do NOT exceed working load limit
