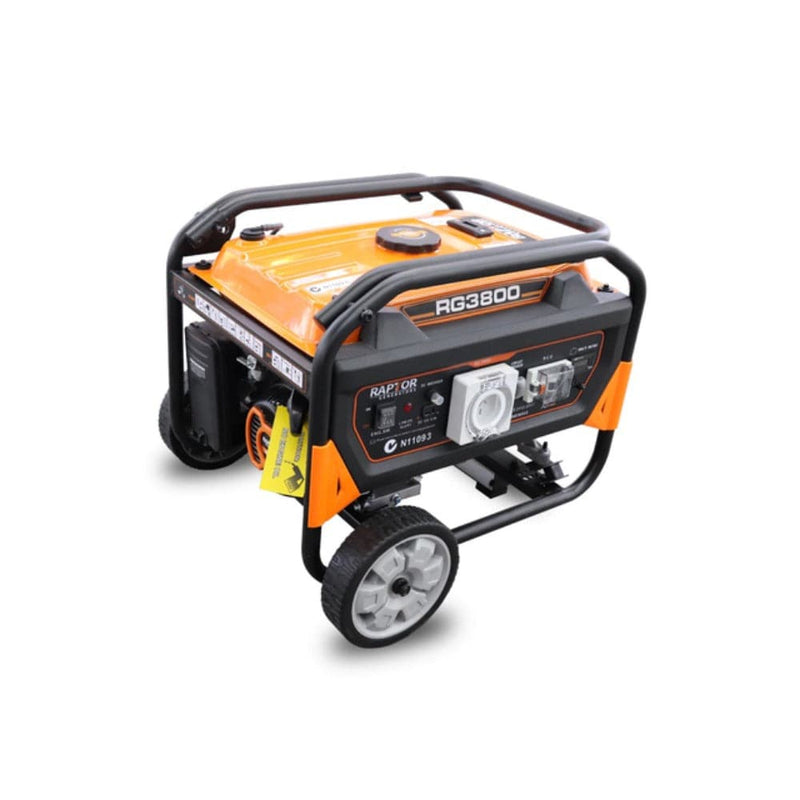

Raptor RG3800 4.75kVa 3800W 223cc 4-Stroke Petrol Tradesman Recoil Start Generator
Features:
- Robust frame, tubular construction technology
- Advanced overhead valve, 4- stroke engine with recoil starter and anti-vibration mounts
- Quality exhaust system ensures a fireproof and quiet operation
- Useful 12v DC socket outlet ideal for charging batteries
- High quality copper wound alternator
- Safety rated electrical circuit breakers
- Low engine oil safety shutdown
- Corrosion resistance finish gives long life in harsh conditions
- RCD safety switch - A safety switch that protects against a 240-volt electric shock that could cause serious injury and even death
- Weather proof outlets- IP66 plugs
- Sine wave technology
- Automatic voltage regulator
- Digital VFT meter
- Handle and wheel kit included
- Australian Standard compliance AS/NZS3112:2017
- ( Construction & demolition sites , work cover approved )
| Engine | GK225 |
| Displacement (cc) | 223 |
| RPM | 3600 |
| Fuel Tank | 15L |
| Fuel Gauge | yes |
| Starting Method | Recoil Start |
| Noise Level | 76dBa (7m) |
| Low oil pressure safety shut down | yes |
| Run time @ 50% Load (hours) | 9 |
| Run time @ 100% Load (hours) | 6.5 |
| EPA approved | yes |
| Backup battery 9Ah | no |
| 240 VOLT AC ELECTRICAL | |
| Voltage | 240v |
| Frequency | 50HZ |
| Continuous Running Power (Watts) | 3500 |
| Maximum Starting Power (Watts) | 3800 |
| Max. output (KVA) | 4.75 |
| Continuous Running Current (Amps) | 14.5 |
| Voltage Control | Automatic Voltage Regulator (AVR), Sine Wave Output |
| Outlets | 1x 15 A, 1P66 |
| Overload Circuit Breaker | yes |
| RCD Safety Switch | yes |
| Digital VFT Meter | yes |
| 12 VOLT DC ELECTRICAL | |
| Maximum Power (Watts) | 100 |
| Maximum Current (Amps) | 8.3 |
| Accessories | |
| Wheels & Handles | yes |
| Engine Oil & Spark Plug Tool | yes |
| Net Weight (kg) | 45.5 |
| Dimensions (L x W x H mm) | 615 x 470 x 485 |
RAPTOR GENERATOR SELECTION GUIDE
|
Device |
Running Power (Watts) |
Starting Power (Watts) |
|
Bathroom |
|
|
|
Hot water system - 250 L |
3,600 |
3,600 |
|
Climate Control |
|
|
|
A/C - Portable/ Window Type 2.8 kW |
1,200 |
2,100 |
|
A/C - Split System 5.2 kw fixed speed |
1,900 |
6,650 |
|
A/C - Split System 5.2 kw Inverter |
1,500 |
1,500 |
|
Fan - Ceiling or Personal |
60 |
210 |
|
Heater- 2,400 W |
2,400 |
2,400 |
|
Construction and Maintenance |
|
|
|
Air Compressor - 1.65 kW |
2,200 |
7,700 |
|
Air Compressor - 2.4 kW |
3,300 |
11,550 |
|
Angle Grinder -180mm |
1,800 |
2,160 |
|
Battery Charger - 12 V, 5.4 A |
100 |
100 |
|
Circular Saw - 270mm |
1,800 |
2,160 |
|
Concrete Mixer - 100L |
1,300 |
1,560 |
|
Concrete Vibrator - 50 mm |
1,900 |
6,650 |
|
Demolition Breaker - 30kg |
1,900 |
2,280 |
|
Drain Cleaner Snake |
400 |
1,400 |
|
Drill - 13mm |
750 |
900 |
|
Orbital Sander - 1/3 Sheet |
200 |
240 |
|
Planer - 82mm |
850 |
1,020 |
|
Pressure Washer - 10 Mpa, 600L/h |
2,400 |
8,400 |
|
Rotary Hammer Drill - 26mm |
850 |
1,020 |
|
Submersible Pump -50mm |
2,200 |
7,700 |
|
Welder- Stick 140 A (3.2mm Electrode) |
6,000 |
7,200 |
|
Entertainment |
|
|
|
Hi- Fi System |
100 |
100 |
|
TV- Large Screen |
200 |
200 |
|
Kitchen |
|
|
|
Coffee Machine |
1,450 |
1,450 |
|
Cooktop - Large Element |
2,400 |
2,400 |
|
Cooktop- Small Element |
1,200 |
1,200 |
|
Dishwasher |
1,800 |
2,400 |
|
Kettle |
2,400 |
2,400 |
|
Microwave |
1,000 |
1,600 |
|
Oven |
3,100 |
3,100 |
|
Refrigerator/ Freezer - Full Size |
200 |
700 |
|
Toaster |
1,000 |
1,000 |
|
Water- Boiler, 3L |
1,500 |
1,500 |
|
Water- Chiller, Free-Standing |
200 |
700 |
|
Laundry |
|
|
|
Clothes Dryer |
2,400 |
2,880 |
|
Washing Machine |
1,200 |
1,800 |
|
Vacuum Cleaner |
2,200 |
2,640 |
|
Lighting |
|
|
|
Fluorescent Lamp 20 W |
20 |
20 |
|
Incandescent Bulb 100 W |
100 |
100 |
|
LED Light 10 W |
10 |
10 |
|
Office |
|
|
|
Computer with LCD Monitor |
150 |
150 |
|
Inkjet Fax/ Printer |
50 |
50 |
|
iPad/ iPhone Charger |
12 |
12 |
|
Laser Fax/ Printer |
900 |
900 |
|
Photocopier |
1,500 |
1,500 |
|
Scanner |
30 |
30 |
|
Security |
|
|
|
Garage Door Opener |
200 |
240 |
