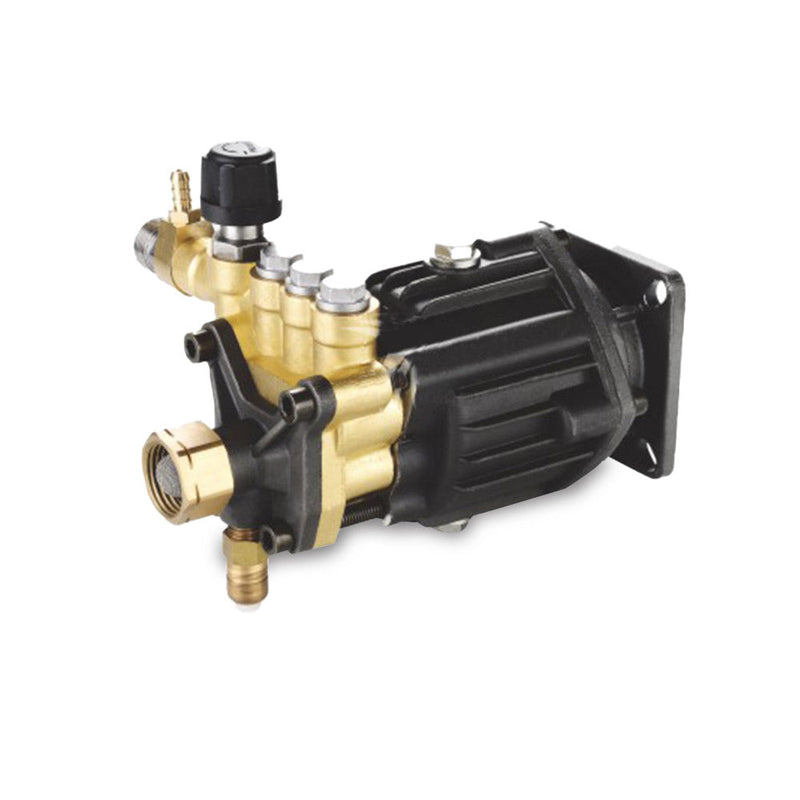

Raptor RGPWDAA-15063A 2800PSI 11.3LPM 6.5HP High Pressure Axial Pump suits RGPW2800
Specifications:
| Pump Model: | DAA-15063A | |
| Bore/Plunger Dia.: | 15mm | |
| Stroke: | 6.3mm | |
| Fluid End/Manifold Material: | Brass Forged |
|
| Version/Type: | A Version,Engine Direct Drive | |
| Flange Type: | A(Fit for engine 6.5hp) | |
| Shaft Dia.: | Male shaft 3/4in,19.05mm | |
| Max Input POWER: | 6.5hp | |
| Max Input RPM: | 3400RPM | |
| Port On Pump: | Outlet M22 Male, Inlet G3/4” Female | |
| Oil Bath Capacity: | 550ml (half level of oil gauge) | |
|
Oil Type: |
SAE 15W/40 Non-Detergent | |
|
Water Inlet Pressure: |
0-50psi/3.5bar | |
|
Max Inlet Water Temp.: |
50℃/122℉ | |
|
Shipping Size.: |
22x21x24cm | |
|
Shipping Weight.: |
4.4kgs | |
| Application: | High Pressure Water |
